MUNICIPLE BOATHOUSE,
LAKE MENDOTA, MADISON (1893 -
S.022) |
|
|
|
|
Municipal Boathouse, Lake
Mendota, Madison, Wisconsin (1893 - S.022). The Municipal
Boathouse on Lake Mendota, in Madison, Wisconsin, a
recreational building and storage facility, was designed by
Frank Lloyd Wright in 1893. He was 26 year old at the time
and a draftsman for the architectural firm of Adler and
Sullivan. In March 1893, the Madison Improvement Association
announced a competition for sketches of a boat house to be
built by the association. Frank Lloyd Wright submitted two
designs, and both were excepted, one for Lake Mendota and
one for Lake Monona. The boat house for Lake Mendota was
completed by the Spring of 1894, but construction of the
lake Monona boathouse was put on hold due to the depression
of 1893. The Lake Mendota Boathouse was built on the edge of
a steep bank. At street level, the boat house appeared to be
approximately one story tall. From the lakeside however, the
size was much more impressive, rising 32.5 feet from the
shoreline.
From the
street a "T" footbridge led to a covered semicircular
loggia. At both ends of the loggia were covered pavilions
that were the top floors of identical towers. A bridge
connected the two towers. The roof and sides of the
boathouse were covered in shingles, with the top five feet
of both towers covered in cream plaster. On three sides of
each tower, were three arched windows and doors. From plans
it appears that one of the towers included a set of stairs
that led down 17.5 feet to the ground floor. The roofs of
the towers were low-pitched with broad overhangs.
From the lake side, the two towers dominated the front
|
|
elevation with a large
arched opening that led to the interior storage for boats.
At the base of each towers, a single centered arched doorway
lead to the interior of the towers. Access was also gained
by walkways on either side of the arched opening in the
center. The boathouse was cut into the hillside and the back
of the interior was semicircular. The roof supported the
semicircular loggia above. Boats could be loaded onto
storage racks via a "pivoted crane" that ran on a circular
track overhead.
Plans and early photographs show two piers extending out
into the lake, but are missing from some later photographs
and may not have survived harsh lakeside weather. The piers
were five feet wide and 54 feet long. From the drawings,
they appear to be built in sections and may have been
detachable and stored inside during the winter. The interior
crane may have been used for stacking the sections during
the winter.
Frank Lloyd Wright felt the design important enough to
include one drawing and two photographs in the June 1900
issue of Architectural Review.
In
later years, crew members from the University of Madison
used the boathouse. A postcard of the crew rowing past the
Boathouse reads: "University Crew, Madison, Wisconsin." The
Wisconsin Historical Society also has a photograph of the "Theta Chi fraternity members standing on the pier in front
of the Lake Mendota Boathouse."
In
the mid-1920s, due to the lack of oversight and care, the
building was deteriorating. It was dismantled in 1926.
|
|
|
|
|
|
PLANS 1893
1894-1922 MODEL
ADDITIONAL WRIGHT STUDIES
|
|
|
|
 |
Date:
1893
Title:

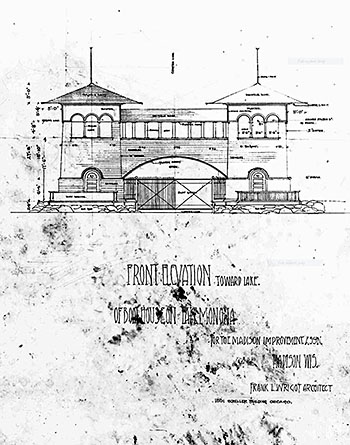

1) Municipal Boathouse, Lake Mendota, Madison, Wisconsin, Front
